Technical Data 技術參數

Features 產品特點

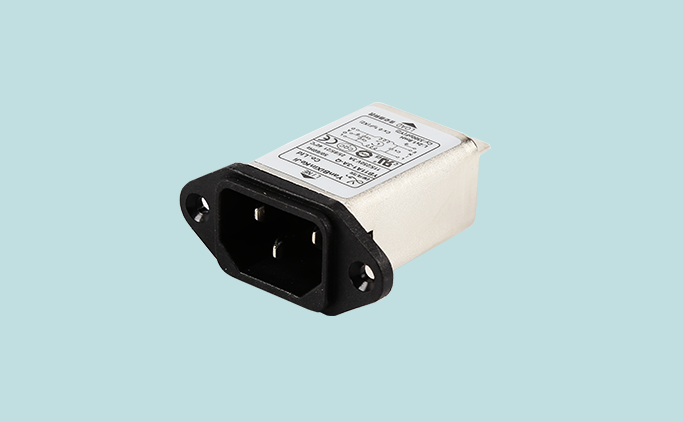

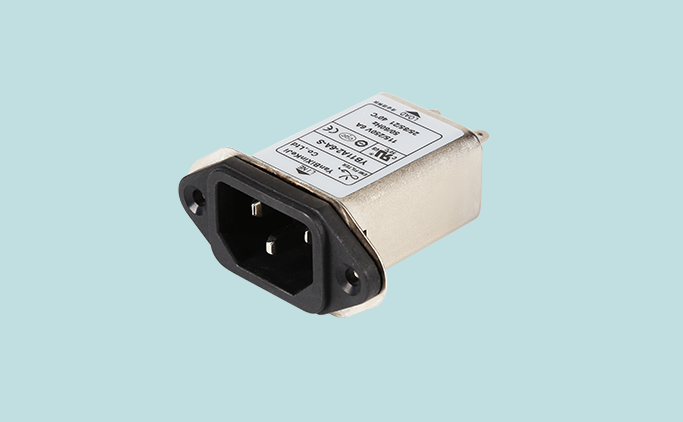

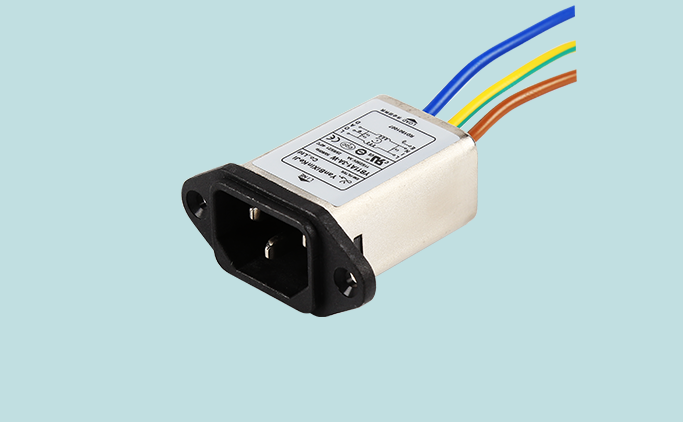

High performance and high attenuation power filters with IEC 320 socket

--帶IEC320插座高性能,高衰減電源濾波器

(R5) types comply with the requirements of IEC/EN60601-1 for creepage and clearance, leakage current and high potential testing.

--(R5)醫療專用產品依據IEC/EN60601-1標準對安全間隙，低漏電流和超高耐壓要求設計。

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Portable electrical and electronic equipment

--便攜式電器和電子設備

Medical equipment

--醫療設備

Test and measurement equipment

--測量測試設備

Small to medium-sized machines and?household equipment

--中小型機械設備和家用設備

Single-phase power supplies,switch-mode power supplies

--單相電源，開關電源

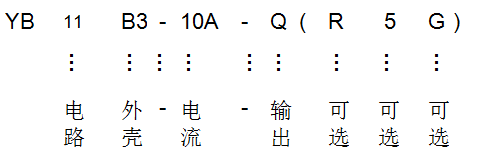

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options* 輸出方式

Bleeder resistor (optional) 泄放電阻R(可選)

接地電感 G(可選)

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11A1-1A

1A

Q

S

W

-

-

<0.8mA

Fig.1

115/250V

50/60Hz

YB11A1-2A

2A

Q

S

W

-

-

Fig.1

YB11A1-3A

3A

Q

S

W

-

-

Fig.1

YB11A1-4A

4A

Q

S

W

-

-

Fig.1

YB11A1-6A

6A

Q

S

W

-

-

Fig.1

YB11A1-8A

8A

Q

S

W

-

-

Fig.1

YB11A1-10A

10A

Q

S

W

-

-

Fig.1

YB11A1-15A

15A

Q

S

W

-

-

Fig.1

YB11A2-1A

1A

Q

S

W

-

-

Fig.1

YB11A2-2A

2A

Q

S

W

-

-

Fig.1

YB11A2-3A

3A

Q

S

W

-

-

Fig.1

YB11A2-4A

4A

Q

S

W

-

-

Fig.1

YB11A2-6A

6A

Q

S

W

-

-

Fig.1

YB11A2-8A

8A

Q

S

W

-

-

Fig.1

YB11A2-10A

10A

Q

S

W

-

-

Fig.1

YB11A2-15A

15A

Q

S

W

-

-

Fig.1

醫療專用產品列表

Model No.

Rated  Current @40°C 額定電流

Terminal Options 輸出方式

Bleeder  resistor(optional) 泄放電阻R(MΩ)

Medical  equipment 醫療專用 5

接地電感 G

Leakage  current  250V/50Hz漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11A1-1A-x(R5)

1A

Q

S

W

1

5

-

<5μA

Fig.2

115/250V

50/60Hz

YB11A1-2A-x(R6)

2A

Q

S

W

1

5

-

Fig.2

YB11A1-3A-x(R5)

3A

Q

S

W

1

5

-

Fig.2

YB11A1-4A-x(R5)

4A

Q

S

W

1

5

-

Fig.2

YB11A1-6A-x(R5)

6A

Q

S

W

1

5

-

Fig.2

YB11A1-8A-x(R6)

8A

Q

S

W

1

5

-

Fig.2

YB11A1-10A-x(R5)

10A

Q

S

W

1

5

-

Fig.2

YB11A1-15A-X(R5)**

15A

Q

S

W

1

5

-

Fig.2

Electrical schematic 電路圖
                    Standard type                                              R5 type

                         Fig.1                                                       Fig.2

                      Lg type

                        Fig.3

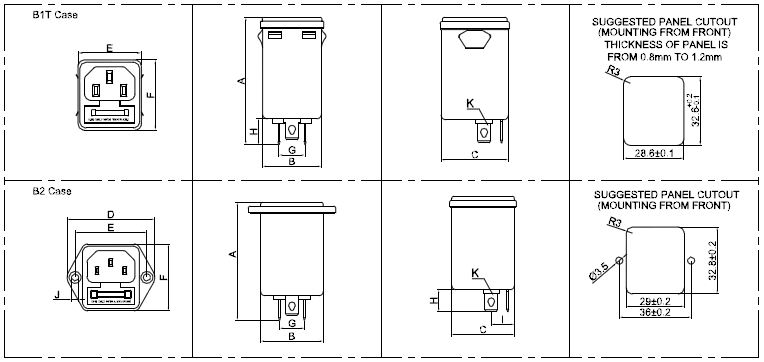

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

——————    共模(common mode)             — — — — —   差模(differential mode)

                               1A                                                              3A

                               6A                                                              8A
