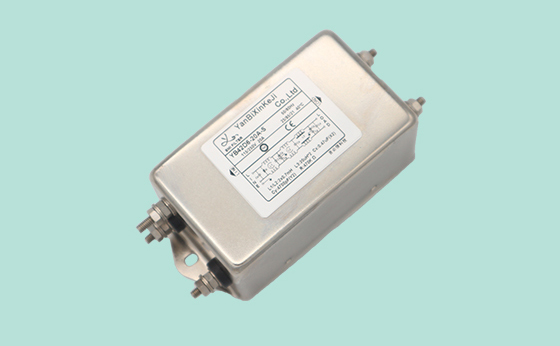

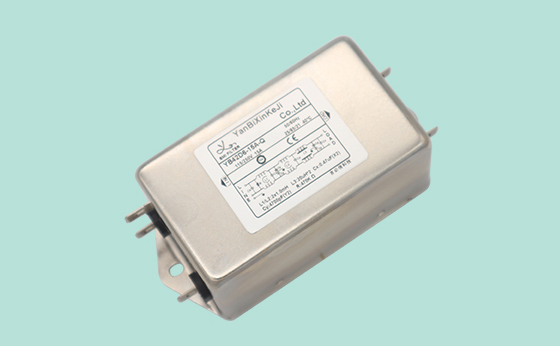

Technical Data 技術參數

Using multi-stage filter circuit, with very good common mode and differential mode noise suppression, general purpose power line filter with fast-on/stud/wire terminals

--采用多級濾波電路，具有非常好的共模和差模噪聲抑制作用，有快速接線端子、螺栓或接線式可供選擇

Standard filters are a practical solution helping you to pass EMI system approval in a short time.

--標準濾波器是一種實用的解決方案，可以幫助您在短時間內通過EMI系統的測試

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Electrical and electronic equipment

--電子電氣設備

Consumer goods

--日用消費品

Medical equipment

--醫療設備

Industrial applications

--工業應用

Building automation

--建筑自動化

Office automation and datacom equipment

--辦公自動化設備和數據通訊設備

Various noisy applications requiring high filter performance

--需要高過濾性能的各種噪聲應用環境

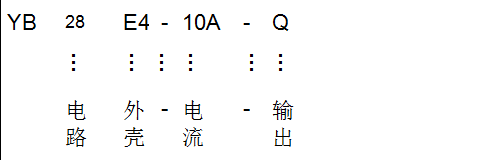

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options* 輸出方式

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB42D3-1A

1A

Q

S

W

<1.0mA

Fig.1

115/250V

50/60Hz

YB42D3-2A

2A

Q

S

W

Fig.1

YB42D4-3A

3A

Q

S

W

Fig.1

YB42D4-4A

4A

Q

S

W

Fig.1

YB42D4-6A

6A

Q

S

W

Fig.1

YB42D5-8A

8A

Q

S

W

Fig.1

YB42D5-10A

10A

Q

S

W

Fig.1

YB42D5-15A

15A

Q

S

W

Fig.1

YB42D6-10A

10A

Q

S

W

Fig.1

YB42D6-15A

15A

Q

S

-

Fig.1

YB42F2-20A

20A

Q

S

T

Fig.1

YB42F2-25A

25A

-

S

T

Fig.1

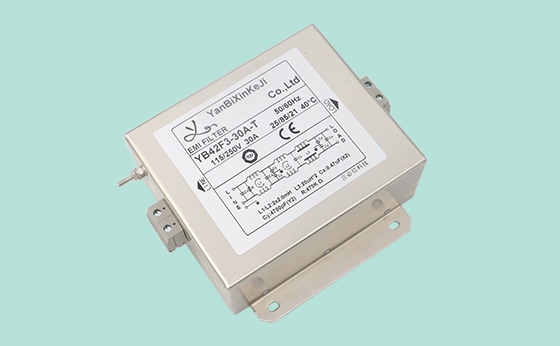

YB42F3-30A

30A

-

S

T

Fig.1

醫療專用產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options 輸出方式

Medical equipment 醫療專用 5

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB42D3-1A

1A

Q

S

W

5

<5μA

Fig.2

115/250V

50/60Hz

YB42D3-2A

2A

Q

S

W

5

Fig.2

YB42D4-3A

3A

Q

S

W

5

Fig.2

YB42D4-4A

4A

Q

S

W

5

Fig.2

YB42D4-6A

6A

Q

S

W

5

Fig.2

YB42D5-8A

8A

Q

S

W

5

Fig.2

YB42D5-10A

10A

Q

S

W

5

Fig.2

YB42D5-15A

15A

Q

S

W

5

Fig.2

YB42D6-10A

10A

Q

S

W

5

Fig.2

YB42D6-15A

15A

Q

S

-

5

Fig.2

YB42F2-20A

20A

Q

S

T

5

Fig.2

*Q: Fast-on 6.35x0.8mm     S: solder 4.0x0.8mm     W: Wire UL1015 18AWG

Electrical schematic 電路圖

                           Standard type                                                                5 type


                                 Fig.1                                                                    Fig.2

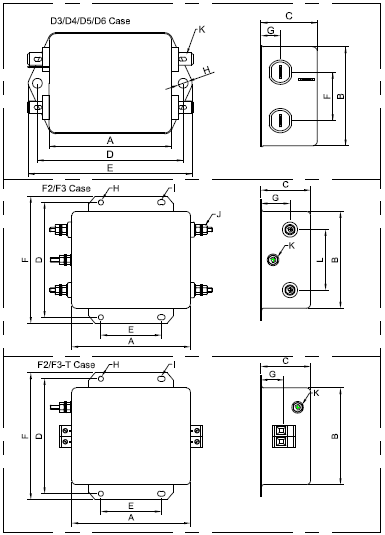

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                            15A                                                                  3A

                            8/10A                                                                   1A

                           6A
