Technical Data 技術參數

On the basis of GJB6242-2008 standard production, working temperature -55 ℃ ~ + 85 ℃

--依據GJB6242-2008標準生產，工作溫度-55℃~+85℃

A two-stage filter circuit is designed for military equipment to be designed through the requirements of CE102 in GJB151A / 152B

--采取兩級以上濾波電路，專門為軍用設備通過GJB151A/152B中CE102傳導發射的要求設計

Can meet the different rated current, rated voltage, fast customization

--能夠滿足不同額定電流、額定電壓，快速定制

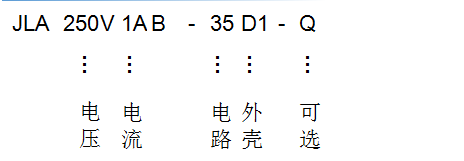

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options* 輸出方式

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)   額定電壓

Operating  Frequency(Hz) 工作頻率

型號

JLA250V1AB-35D1

1A

-

-

W

<0.8mA

Fig.1

115/250V

50/60Hz

JLA250V3AB-35D1

3A

-

-

W

Fig.1

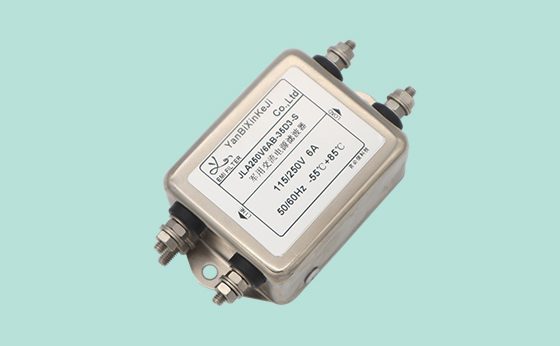

JLA250V6AB-35D3

6A

Q

S

W

Fig.1

JLA250V10AB-35D5

10A

Q

S

W

Fig.1

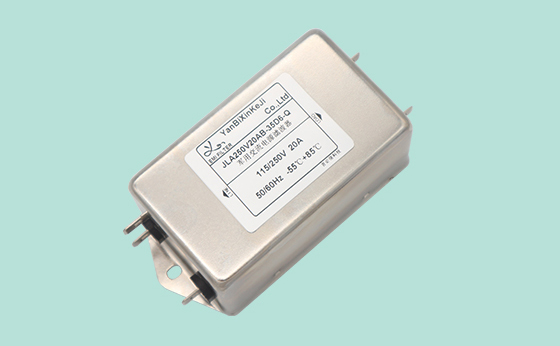

JLA250V20AB-35D6

20A

Q

S

-

<1.0mA

Fig.1

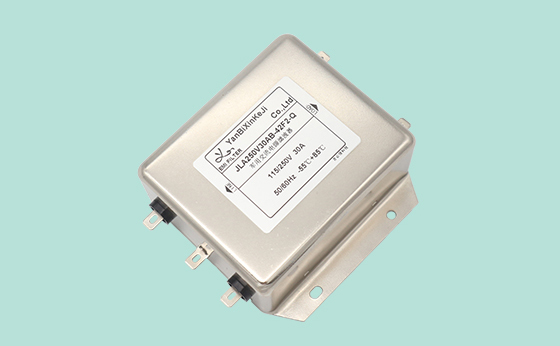

JLA250V30AB-42F2

30A

Q

S

-

Fig.2

JLA250V50AB-42F3

50A

Q

S

-

<5.0mA

Fig.2

JLA250V100AB-42F6

100A

Q

S

-

Fig.2

*Q: Fast-on 6.35x0.8mm     S: solder 4.0x0.8mm     W: Wire UL1015 18AWG

Electrical schematic 電路圖

Standard type


                                 Fig.1                                                                    Fig.2

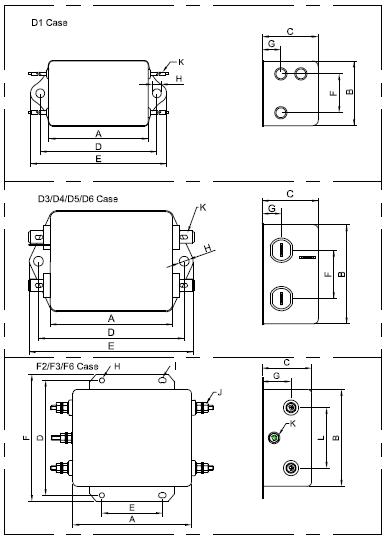

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                            1A                                                        3A

                            6A                                                         10A

                           20A                                                         30A
