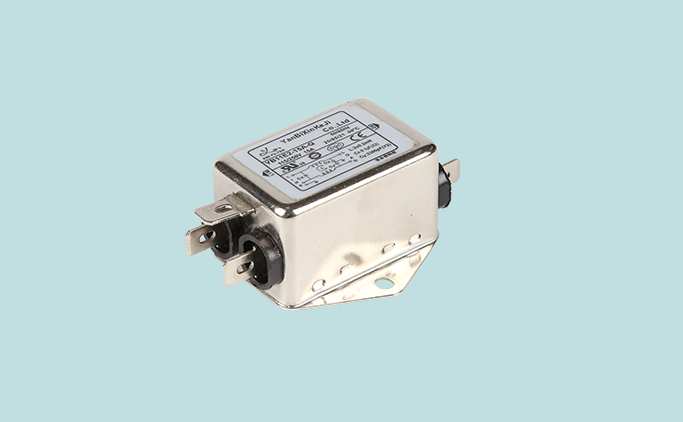

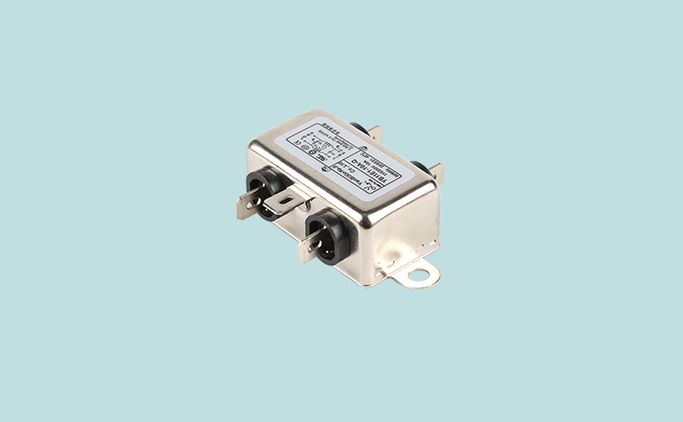

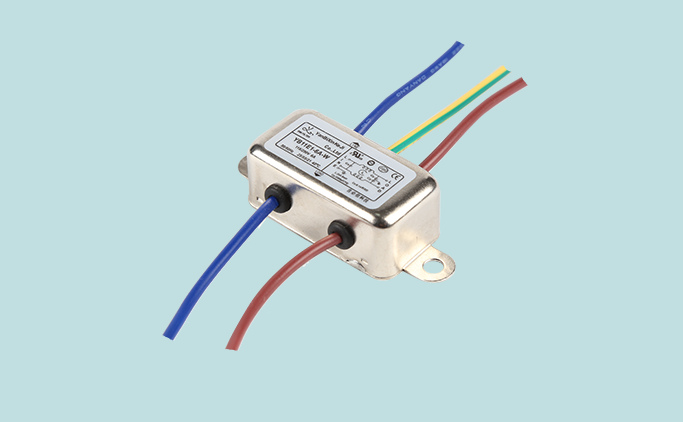

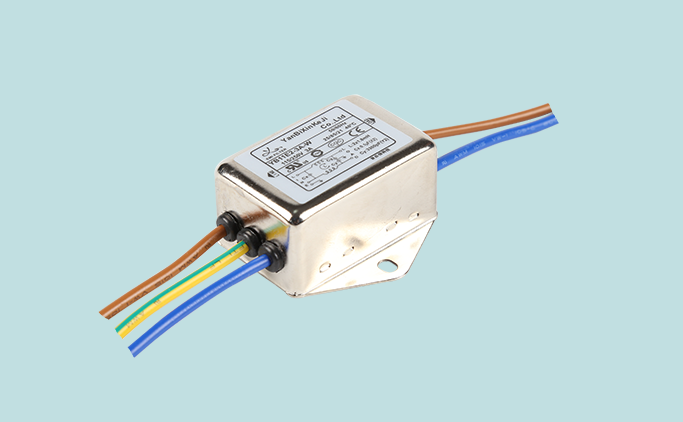

Technical Data 技術參數

Can be used to cover a broad range of usage and they  offer a good size/amperage ratio

--緊湊的體積，能夠應用在各種場合中。

YD11 filters are also available as two-stage filters(YD21) for more noisy environmment

--YD11系列濾波器也可以串2個當做YD21系列產品使用在嘈雜環境中。

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Electrical and electronic equipment

--電子電氣設備

Datacom equipment

--通訊設備

Office automation equipment

--辦公自動化設備

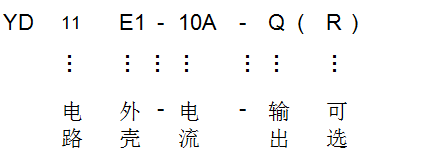

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options* 輸出方式

Bleeder resistor(optional) 泄放電阻R(可選)

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11E1-1A

1A

Q

-

W

-

Fig.1

12~250

DC

YB11E1-3A

3A

Q

-

W

-

Fig.1

YB11E1-6A

6A

Q

-

W

-

Fig.1

YB11E1-8A

8A

Q

-

W

-

Fig.1

YB11E1-10A

10A

Q

-

W

-

Fig.1

YB11E2-1A

1A

-

-

W

-

Fig.1

YB11E2-3A

3A

-

-

W

-

Fig.1

YB11E2-6A

6A

-

-

W

-

Fig.1

YB11E2-8A

8A

-

-

W

-

Fig.1

YB11E2-10A

10A

-

-

W

-

Fig.1

YB11E3-1A

1A

Q

-

W

-

Fig.1

YB11E3-3A

3A

Q

-

W

-

Fig.1

YB11E3-6A

6A

Q

-

W

-

Fig.1

YB11E3-8A

8A

Q

-

W

-

Fig.1

YB11E3-10A

10A

Q

-

W

-

Fig.1

*Q: Fast-on 6.35x0.8mm      S: Screw lug     W: Wire UL1015 18AWG

Electrical schematic 電路圖

                            Standard type

                              Fig.1

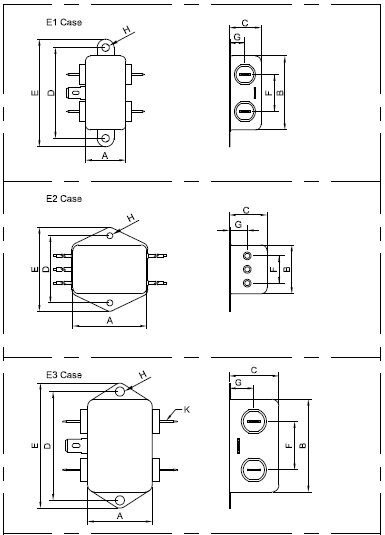

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                             1A                                                      3A

                             6A                                                        10A

                          20A
